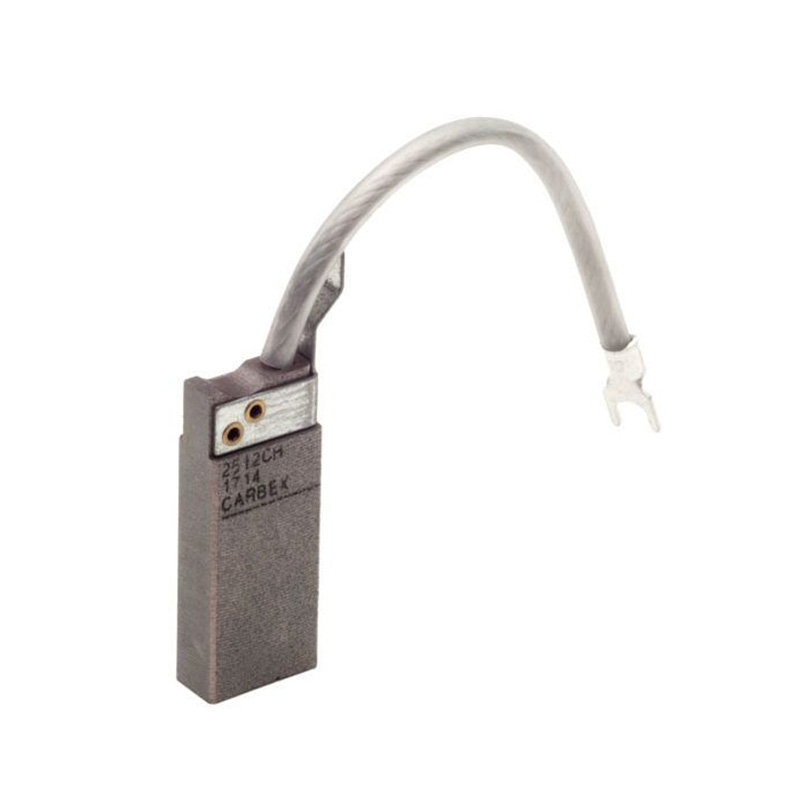

Carbon Sandwich Grounding Brush 2512-40-SW-KIT

Carbon Sandwich Grounding Brush 7090-40-SW-KIT for Shaft Grounding in Siemens, Nordex, VEM & Senvion Turbines

ICP Wind offers a wide range of Carbon Brushes, both in copper- and silver-graphite materials. Manufactured to perform in extreme conditions, including cold and warm climates, low or high humidity, for onshore and offshore located wind turbines.

Shaft grounding is one of the necessary actions to be provided during the operation of different types of motors and generators. Grounding brushes eliminate bearing currents that can lead to the formation of small pits, grooves, and serrations on the contact points of bearings. A damaged surface on the contact points of bearings will lead to increased wear and shortened service life. Therefore, grounding brushes protect bearings from damages and wind turbines from unnecessary downtime and costly repairs. Sandwich type silver/graphite brush is one of the most popular brushes used for grounding worldwide. Combination of electro graphite, which is responsible for lubrication, with silver-graphite that exhibits excellent conductivity provide best grounding performance in operation together with long service life.

Carbex develops their brushes in close cooperation with several wind turbine OEM’s. Each brush is developed for our customer's requirements. Additionally, all Carbex carbon brushes have been field-tested to prove high-quality performance in varying atmospheric conditions. Carbex carbon brushes are contamination tolerant, eliminating clog filters and preventing dust to sustain lifetime expectancy for your Wind Turbine application.

Applications Slip ring

Actuation Method Electric

Material Silver Graphite

OEM Replacement Vestas

Wind Turbine Brand GE, Loher, Siemens, Senvion, Winergy

Radius R=140 mm

Cable Length 150mm

OEM Numbers Schunk: 10697850

Size 25 x 12,5 x 64 mm
