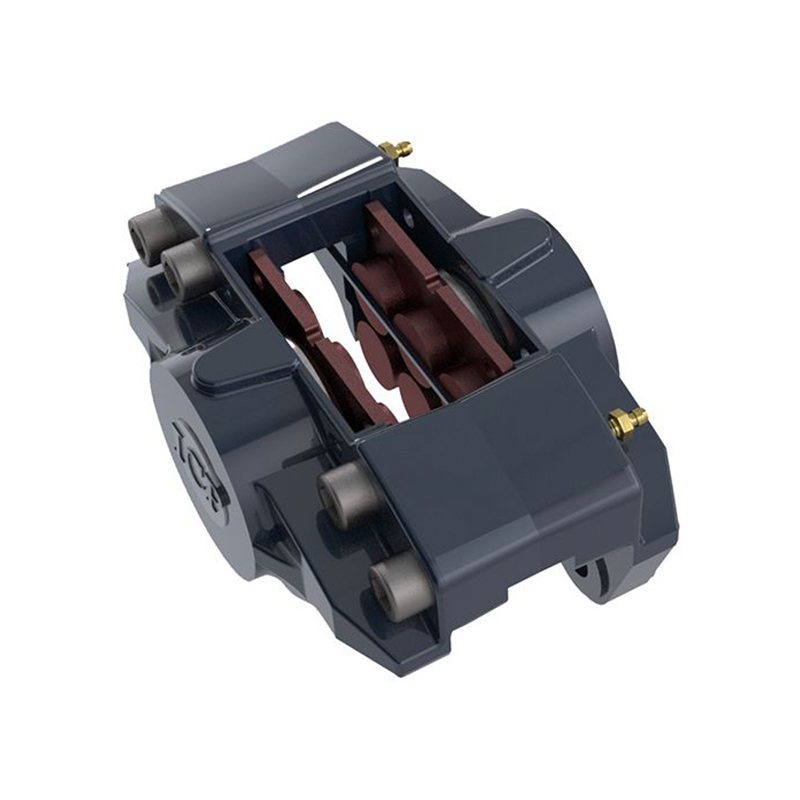

Rotor Brake HAB-2-75

ICP Rotor Brake HAB-2-75 Replaces Brembo P75b

ICP Wind manufactures reliable and cost-effective wind turbine brakes. Rotor brakes - often referred to as high-speed brakes -  are designed to safely stop a wind turbine rotor in an emergency or parking operations.

HAB-2-75 is compact in design with a piston in each opposed caliper. Designed to stop, hold and control the turning of a rotor. Manufactured with a minimum air gap for shortened response times and fast braking. Oil pressure needs to be applied - in order to brake. All ICP brakes work tirelessly against testing conditions to sustain efficiency levels, ensure reliability and resolve any concerns or issues that may occur to reduce turbine downtime.

HAB-2-75 can be top-mounted and side-mounted dependent on your application.

Actuation Method Hydraulic

OEM Replacement Brembo

Wind Turbine Brand Acciona, CWEL, Envision, Gamesa, GE, Loher, NEG Micon, NEPC, Nordex, Nordtank, Siemens, Suzlon, Senvion, VEM, Vestas, Wincon, Winergy

Brake Type Caliper

Braking Force 53,016 N

Friction Coefficient 0.4

Pad Area 5447 mm² (Sintered)

Piston Area 4418 mm²

Operating Pressure 15 Mpa

Compares With Yes

Max. Clamping Force 66,270 N (each half caliper)

OEM Numbers Vestas:109827, Vestas:V66
