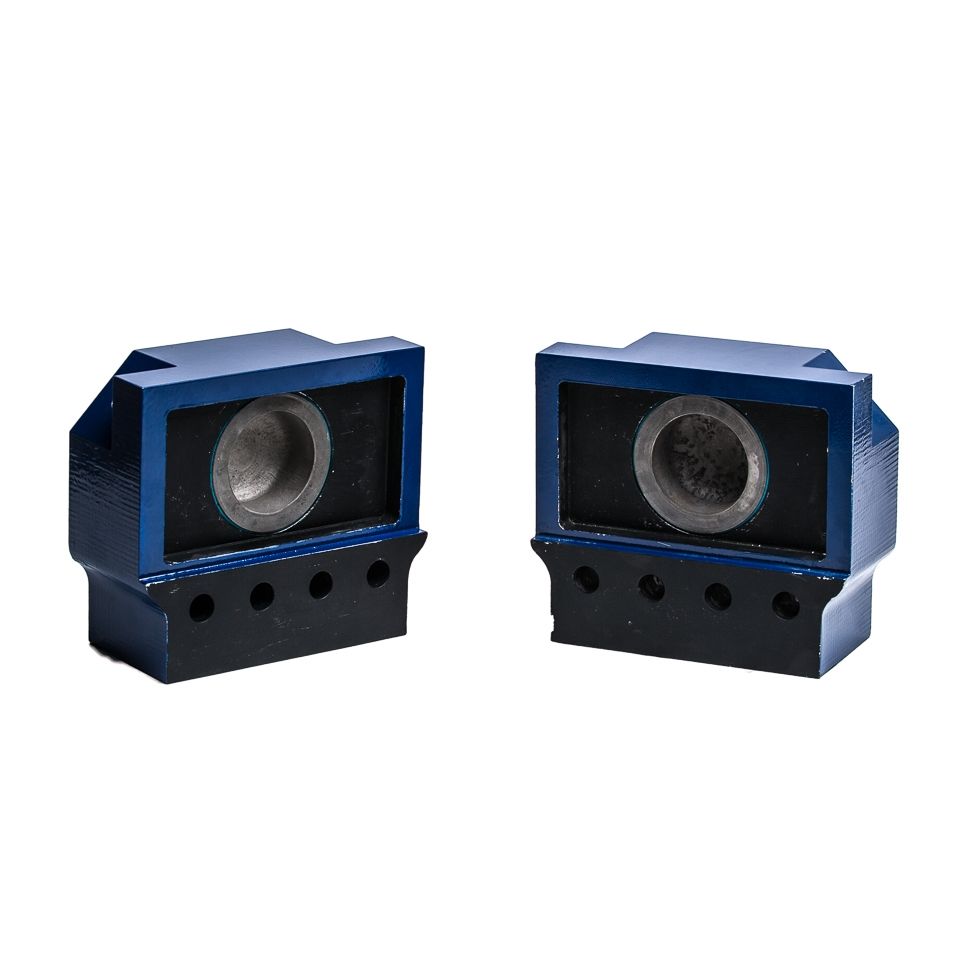

Yaw Brake HAB-2-90

ICP Active Yaw Brake HAB-2-90

ICP Wind manufactures reliable and cost-effective wind turbine brakes. ICP yaw brakes position the nacelle in the direction of the wind to maximise power. Engineered for cold and warm climates, for onshore and offshore wind turbines.

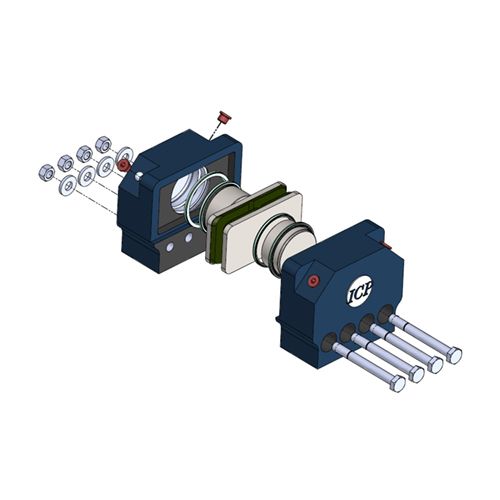

HAB-2-90 is a compact yaw brake with a piston in each opposed caliper. Manufactured to avoid oil leakage and expensive turbine complexities when replacing, installing, or mounting. Oil pressure needs to be applied - in order to brake. All ICP brakes work tirelessly against testing conditions to sustain efficiency levels, ensure reliability and resolve any concerns or issues that may occur to reduce turbine downtime.

Actuation Method Hydraulic

OEM Replacement Dellner

Wind Turbine Brand Vestas

Wind Turbine Model Vestas WD34

Brake Type Caliper

Braking Force 63,616 N

Friction Coefficient 0.4

Pad Area 14673 mm² (organic)

Operating Pressure 12.5 Mpa

Compares With Yes

Max. Clamping Force 79,521 N (each half caliper)
