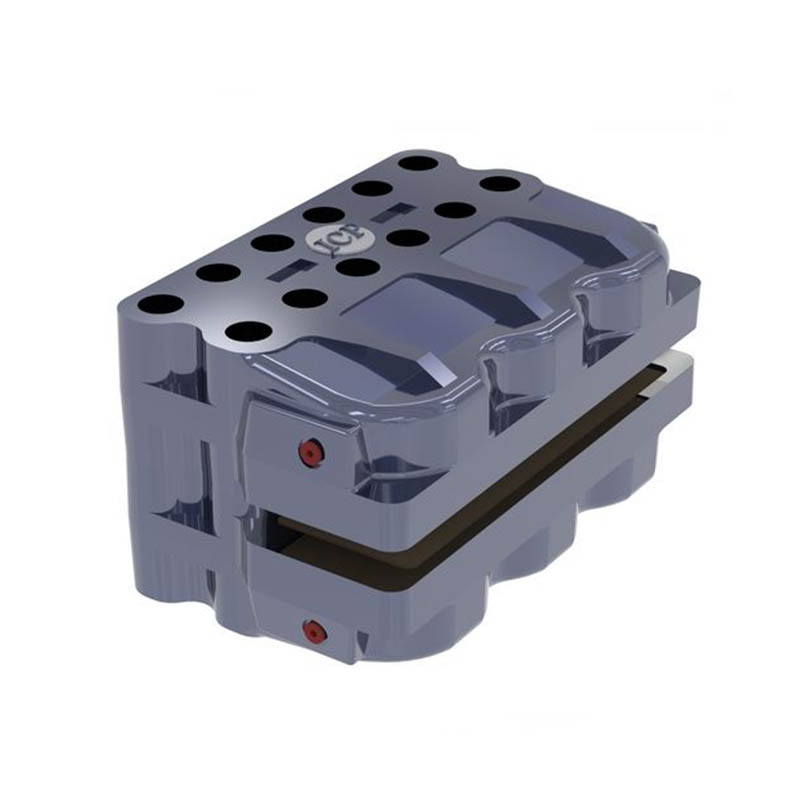

Yaw Brake HAB-6-120

ICP Active Yaw Brake HAB-6-120

ICP Wind manufactures reliable and cost-effective wind turbine brakes. ICP yaw brakes position the nacelle in the direction of the wind to maximise power. Engineered for cold and warm climates, for onshore and offshore wind turbines.

HAB-6-120 is an active yaw brake with three pistons in each opposed caliper. Oil pressure needs to be applied - in order to brake. All ICP brakes work tirelessly against testing conditions to sustain efficiency levels, ensure reliability and resolve any concerns or issues that may occur to reduce turbine downtime.

Actuation Method Hydraulic

OEM Replacement Antec, Svendborg

Wind Turbine Brand Acciona, ENO Energy Systems, GE, Nordex, Nordtank, Siemens, Senvion, Vestas

Wind Turbine Model AW-3000, EVIAG 2.5MW

Brake Type Caliper

Braking Force 434,000 N

Friction Coefficient 0.4

Pad Area 55,617 mm² (organic)

Piston Area 11310 mm²

Operating Pressure 16 Mpa

Compares With Svendborg BSAB 120, 590-0136-801

OEM Numbers Svendborg 590-0136-801
